产品信息

4×10G误码测试仪
名称:

4×10G误码测试仪

类别:
测试仪器
型号:
4×10G误码测试仪

4×10G误码测试仪 规格:


Fiberer Rohs

 4×10G误码测试仪 产品特性

4-channel standard multi-rate BERT between 9.95 Gb/s and 11.3 Gb/s

● PRBS7/23/31 pattern or clock generation and error detection with integrated clock data recovery

● Two accurate and stable internal clocks built-in, with stability better  than 1.5ppm and 20ppm respectively

● 4 channel 10G PPG from electrical SMA Connector or QSFP module

● USB2.0 interface and remote control with PC software

● Fully programmed

● Easy-to-use and cost-effective

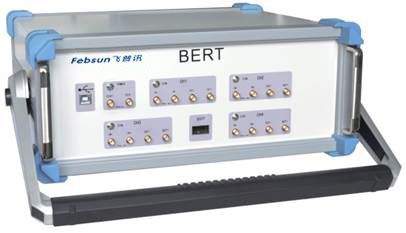

4x10G误码测试仪

 4×10G误码测试仪 产品应用

● Communications IC test

● PON Systems

● Telecommunication  systems

● Data communication systems

4×10G误码测试仪 规格参数

Parameter

Symbol

MIN

TYP

Max

UNIT

NOTE

Data Rate

DR

1.25



14.0625

Gbps

Max Rate Support 16GFC

No. of channels





5







PRBS Pattern 2N-1

N

7/9/10/11/15/23/31





Data input Termination

AC-Coupled



Data Output Amplitude

T_Vdiff

300





mV



Data Output Termination

AC-Coupled



Data Output Resistance

T_Rd

85

100

115

Ω

Differential

Data input Resistance

R_Rdin

85

100

115

Ω



Data input Termination

AC-Coupled



Trigger output Frequency

ftriout

-

-

-

Gbps

Data rate/8

Trigger output Termination

AC-Coupled



Warm Up Time

Twu

10









Operating Temperature

Top

10



40

oC

Ambient Temp

Power

APwr



3.5



W

25 oC Ambient temp

测试数值

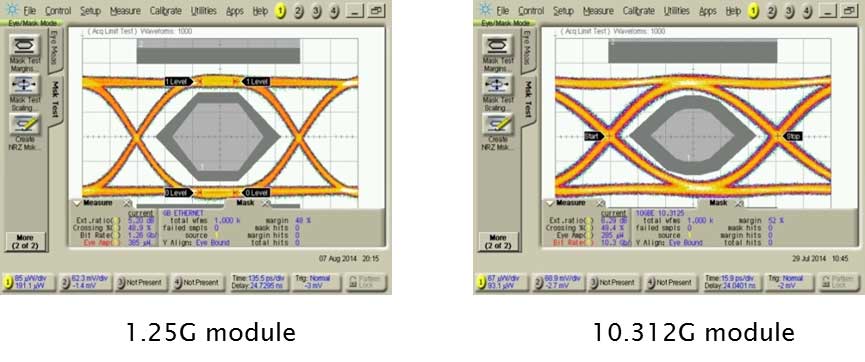

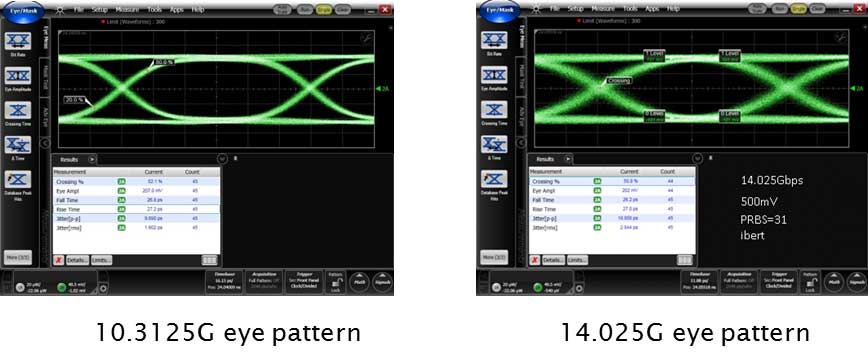

 测试眼图

4×10G误码测试仪 订货信息

Part Numbers

Description

BERT40-1

4X10G Gb/s Serial BERT with 4 channel electrical output and 4 channel optical output

BERT40-2

4X10G Gb/s Serial BERT with 4 channel electrical output
