产品信息 |
|
|
|
|
|
 |
|
|
名称:
|
超宽带光源 |
| 类别: |
光源订购 |
| 型号: |
超宽带光源 |
|
| |

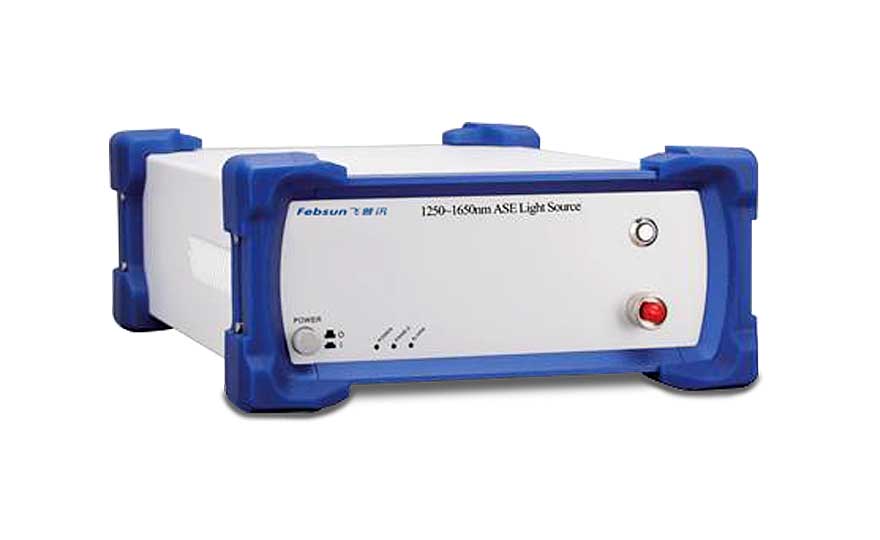

产品简介 - 超宽带光源
超宽带光源由多个宽带光源组合而成，带宽在750～1750nm范围内可自由选择组合， 最宽工作范围可达500nm。常规偏振和低偏振两种规格可选，其中低偏振版本偏振度可低至10%以下。
特性 - 超宽带光源
● 工作带宽最大可达500nm
● 光谱密度最高可达-20dBm/nm
● 光谱密度稳定度高
● 偏振度低（带消偏器）
应用 - 超宽带光源
● 光纤传感系统
● 光纤无源器件性能测试
● 光纤器件自动化测试系统
● 偏振度低（带消偏器）
规格参数 - 超宽带光源
|
Parameters |
Unit |
Reference Information |
|
Operating wavelength range |
nm |
800~1100,1250~1650,1250~1720 or customize |
|
Spectrum density |
dBm/nm |
-30, -25 or -20 |
|
Ripple1 (typ) |
dB |
0.3 |
|
Output power short -term stability |
dB |
≤0.02 (Within 15 minutes) |
|
Output power long -term stability |
dB |
≤0.08 (Within 8 hours) |
|
Spectrum density stability |
dB |
≤0.05 (Within 5 minutes) |
|
Operating mode |
- |
CW |
|
Fiber type |
- |
SMF-28e or Hi1060 |
|
Output connector |
- |
FC/UPC, FC/APC, SC/APC or SC/UPC |
|
Operating temperature |
°C |
10 ~ 50 |
|
Storage temperature |
°C |
-20 ~ 70 |
|
Relative humidity |
% |
20~90(Non-condensation) |
|
Power supply |
- |
AC90~250V, 50~60Hz, 20W |
|
Dimensions (L×W×H) |
mm |
360×250×110 (Desktop) |
|
|
|
430×340×47.5 (19" 1U rackmount) |
订货信息 - 超宽带光源
|
OS-EB-1-2-3-4-5-6-7-8 |
|
1 |
Polarization degree |
S=Standard |
L=Low |
- |
- |
- |
|
2 |
Package |
D=Desktop |
U=19" 1U rackmount |
- |
- |
|
3 |
Center wavelength |
950=950nm |
1310=1310nm |
1450=1450nm |
xxxx=Customize |
- |
|
4 |
Bandwidth |
300=300nm |
400=400nm |
470=470nm |
xxx=Customize |
- |
|
5 |
Spectrum density |
30=-30dBm/nm |
25=-25dBm/nm |
20=-20dBm/nm |
xx=Customize |
- |
|
6 |
Power adjustment |
1=With |
0=Without |
- |
- |
- |
|
7 |
Fiber type |
S=SM fiber |
P=PM fiber |
- |
- |
- |
|
8 |
Connector |
FA=FC/APC |
FU=FC/UPC |
SA=SC/APC |
SU=SC/UPC |
NA=None |
, textfill-fill-alpha: 100.0%; mso-style-: #231F20">V , 50~60Hz, 20W |
|
Dimensions (L×W×H) |
mm |
360×250×110 (Desktop) |
|
|
|
430×340×47.5 (19" 1U rackmount) |
订货信息 - 超宽带光源
|
OS-EB-1-2-3-4-5-6-7-8 |
|
1 |
Polarization degree |
S=Standard |
L=Low |
- |
- |
- |
|
2 |
Package |
D=Desktop |
U=19" 1U rackmount |
- |
- |
|
3 |
Center wavelength |
950=950nm |
1310=1310nm |
1450=1450nm |
xxxx=Customize |
- |
|
4 |
Bandwidth |
300=300nm |
400=400nm |
470=470nm |
xxx=Customize |
- |
|
5 |
Spectrum density |
30=-30dBm/nm |
25=-25dBm/nm |
20=-20dBm/nm |
xx=Customize |
- |
|
6 |
Power adjustment |
1=With |
0=Without |
- |
- |
- |
|
7 |
Fiber type |
S=SM fiber |
P=PM fiber |
- |
- |
- |
|
8 |
Connector |
FA=FC/APC |
FU=FC/UPC |
SA=SC/APC |
SU=SC/UPC |
NA=None |
|
|
