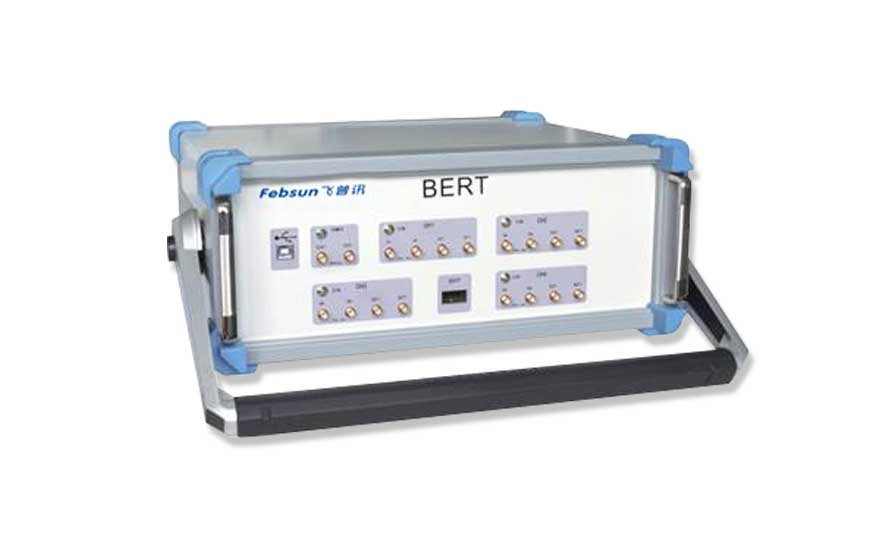

4×25G误码测试仪 产品特性

● 4-channel standard multi-rate BERT between 25.78Gbps and 27.95Gbps

● PRBS7/9/15/23/31 pattern or clock generation and error detection with integrated clock data

recovery

● High speed trigger output

● Automatically synchronized alignment

● Output connector can be compatible with PRC-3.5 and SMA

● Easy-to-use and cost-effective

4×25G误码测试仪 产品应用

● Communications IC test

● PON Systems

● Telecommunication  systems

● Data communication systems

● CFP2/CFP4/QSFP28/SFP28

 4×25G误码测试仪 规格参数

Parameters	Symbol	MIN	TYP	Max	UNIT	NOTE
Data Rate	DR	25.78		27.9	Gbps
No. of channels			4
PRBS Pattern 2N-1	N	7/9/15/23/31
Data input Termination	AC-Coupled
Data Output Amplitude	T_Vdiff	600			mV
Data Output Termination	AC-Coupled
Data Output Resistance	T_Rd	85	100	115	ohm	Differential
Data input Resistance	R_Rdin	85	100	115	ohm
Data input Termination	AC-Coupled
Trigger output Frequency	ftriout	3.2225		3.4875	Gbps	Data rate/8
Trigger output Termination	AC-Coupled
Clk output Frequency	fclkout	644.5312		698.8123	Mbps	Data rate/40
Clk output Termination	AC-Coupled
Ext clk Input Duty Cycle	CK_DCD	40		60	%
Ext clk Input Amplitude	CK_Vin	600		1600	mVdpp
Warm Up Time	Twu	10			S
Operating Temperature	Top	10		40	oC	Ambient Temp
Power Consumption	APwr			5	W	25 oC Ambient temp

 眼图-4×25G误码测试仪

订货信息-4×25G误码测试仪

Part Numbers	Description
BERT100	4X25G Gb/s Serial BERT
